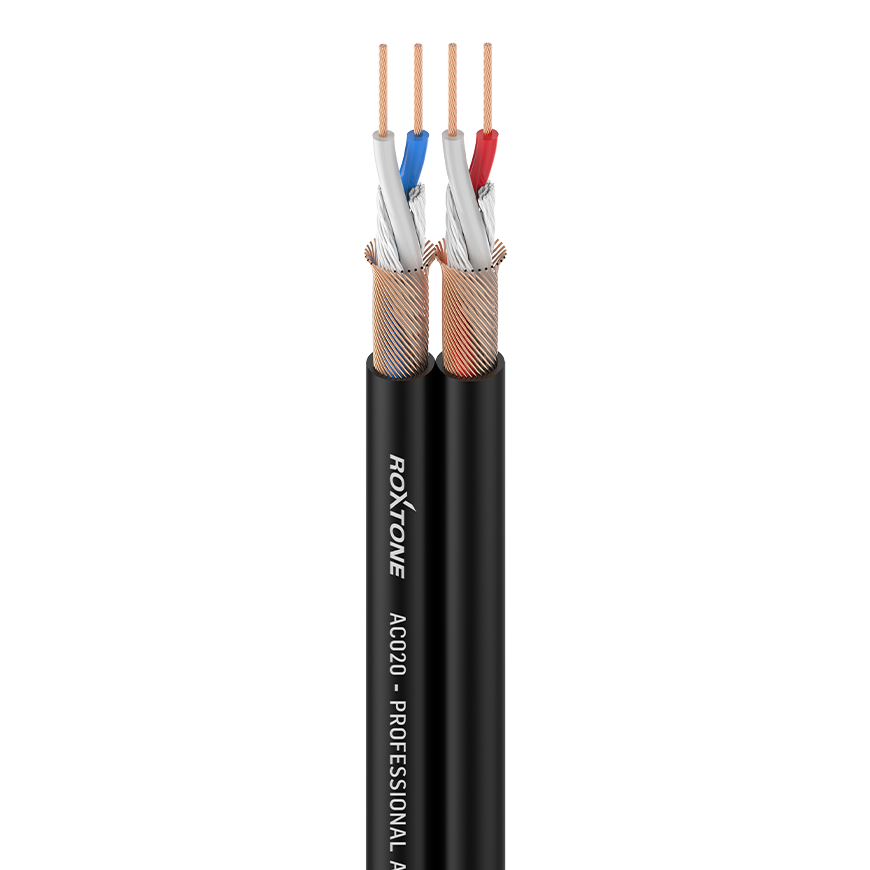

AC020

Flat Audio Cable

AC020

26AWG – 2 x 2 x 0.14 mm²
Color
Applications: Cabling for balanced units, Connection of HiFi-units, Construction of Y-adapter cables, Manufacture of insert cables

Features

  • Very flexible due to the use of fine individual stranding
  • Every conductor is insulated and individually shielded with copper spiral shielding
  • Small jacket diameter, ensuring easy handling with XLR and jack connectors

Technical Data

Jacket, diameter PVC 4 x 8 mm
AWG 26
No. of inner conductors 2 x 2 x 0.14 mm²
Copper strand per conductor 18 x 0.10 mm
Conductor insulation PE 1.2 mm
Shielding Copper spiral shielding
Shielding factor 90 %
Temperature range Min.-20 °C
Temperature range Max.+70 °C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
AC020L1000BK 100 m/Roll 4 0.031
AC020L3000BK 300 m/Roll 2 0.039

Electrical Data

Capac. cond./cond. per 1 m 50 pF
Capac. cond./shield. per 1 m 100 pF
Cond. resistance per 1 m 122 mΩ
Shielding resistance per 1 m 50 mΩ
