C6AE

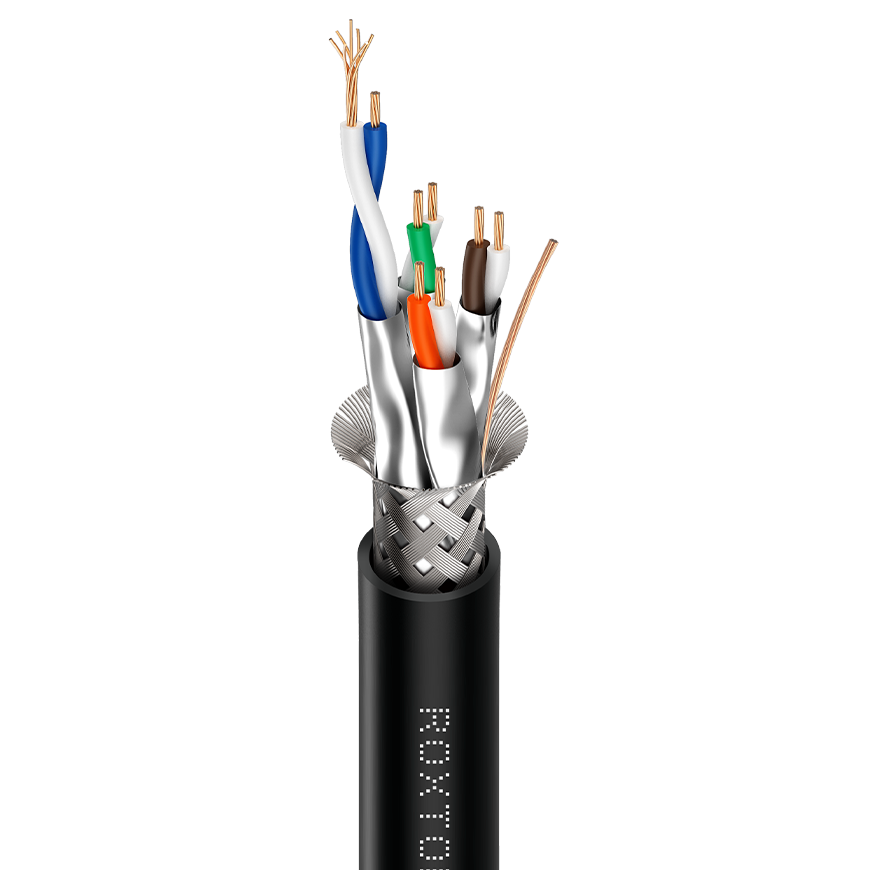

Flexible CAT6a Data Cable S/FTP

C6AE

24AWG – 4 × 2 × 0.22 mm²
Color
Applications: It’s excellent data cable for mobile outdoor transmissions of digital audio or network signals, Use for all CAT5e, CAT6, CAT6a transmissions

Features

  • Great durability, outdoor temperature resistant, easy to reel
  • Large wire cross-section AWG24 for long distance use up to 70m
  • Foam-skin PE insulation and shielded in pairs with an AL foil

Technical Data

Jacket, diameter TPE 8.0 mm
AWG 24
No. of inner conductors 4 x 2 x 0.22 mm²
Copper strand per conductor 7 x 0.20 mm
Conductor insulation Foam-skin PE
Shielding Braided shielding with 128 x 0.12 mm + AL/PT-foil + drain wire 7 x 0.2 mm
Shielding factor 100%
Temperature range Min. -40 °C
Temperature range Max. +80 °C
Packaging 100/300 m roll


Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
C6AEL1000BK 100 m/Roll 2 0.028
C6AEL3000BK 300 m/Roll 1 0.047

Electrical Data

Capac. cond./cond. per 1 m 38.3 pF
Capac. cond./shield. per 1 m 82 pF
Cond. resistance per 1 m 85 mΩ
Shield. resistance per 1 m 7.5 mΩ
