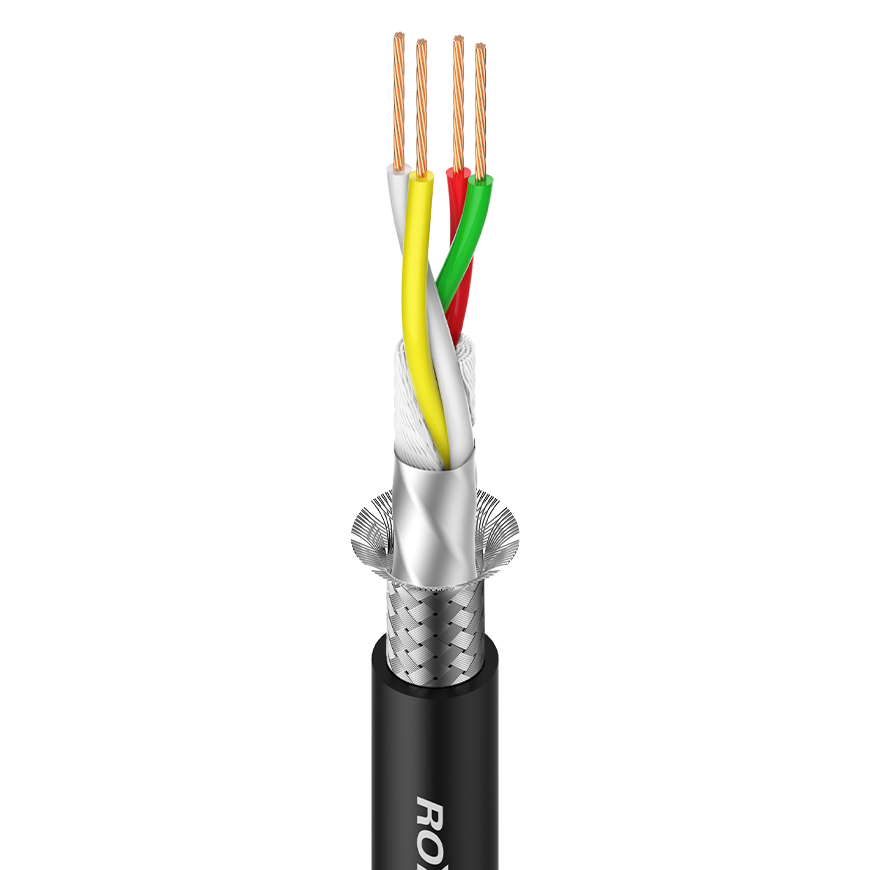

AES/EBU & DMX Cable – 22AWG – 2 x 0.34 mm²
AES/EBU & DMX Cable
| Jacket, diameter | PVC 7.0 mm |
| AWG | 22 |
| No. of inner conductors | 4 x 0.34 mm² |
| Copper strand per conductor | 7 x 0.25 mm |
| Conductor insulation | PE 1.70 mm |
| Shielding | Tin plated copper braided shielding with 128 x 0.10 mm+ AL/PT-foil |
| Shielding factor | 100 % |
| Temperature range | Min. -20 °C |
| Temperature range | Max. +70 °C |
| Packaging | 100/300 m roll |
| Order Code | Length | Carton QTY (PCS) |
Carton Volume (m³) |
| DMX004L1000BK | 100 m/Roll | 2 | 0.024 |
| DMX004L3000BK | 300 m/Roll | 1 | 0.037 |
| Capac. cond./cond. per 1 m | 49.7 pF |
| Capac. cond./shield. per 1 m | 108.7 pF |
| Cond. resistance per 1 m | 52.9 mΩ |
| Shield. resistance per 1 m | 22.59 mΩ |
