High End Instrument Cable - CLEAN & BRIGHT

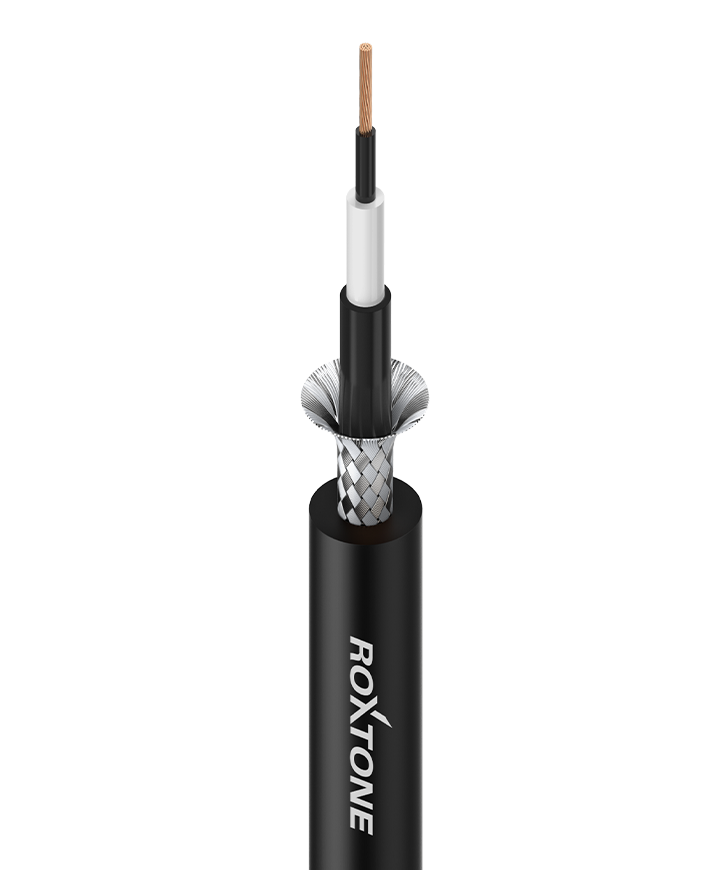

GCX150

24AWG – 1 x 0.22 mm²

Color

Applications: High end quality cable for guitar and keyboard in studio and stage

Very robust due to the large conductor diameter and fine individual stranding
100% protected due to double shielding (“X” mixed braided shielding + semiconductor )
Good electrical values, super low capacitance 71.7 pF
Powerful, clear sound transmission of any instrument signals

Jacket, diameter	PVC 7.2 mm
AWG	24
No. of inner conductors	1 x 0.22 mm²
Copper strand per conductor	28 x 0.10 mm
Conductor shielding	PE semiconductor 1.1mm
Conductor insulation	Foamed PE 3.8mm
Shielding	“X” mixed braided shielding technology
Shielding factor	100 %
Temperature range	min. -20 °C
Temperature range	max. +70 °C
Packaging	100 m roll
