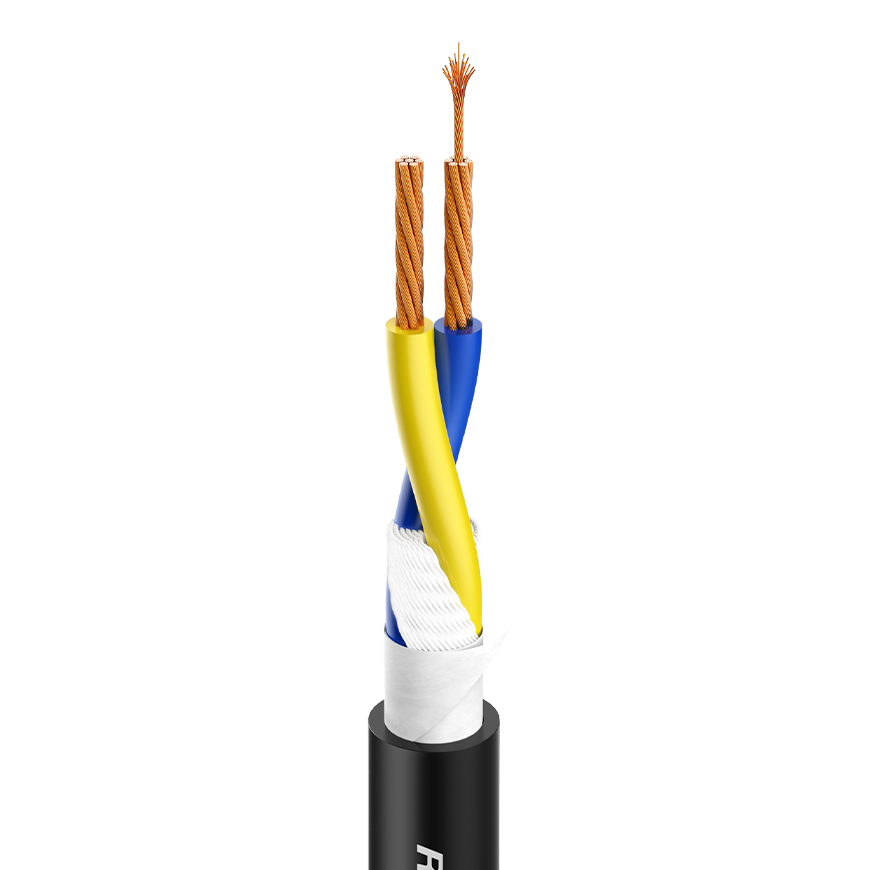

HFSC215

Highly Flexible Speaker Cable

HFSC215

16AWG – 2 x 1.5mm²
Color
Applications: All types of sound systems, Wiring of HiFi-systems, Mobile outdoor areas
Product Type: Bulk Speaker Cables

Features

  • The special double strands technology with very thin OFC wires ensure the cable to be super highly flexible
  • Soft PVC jacket and inner conductors twisted grant a perfect winding

Technical Data

Jacket, diameter PVC 8.5 mm
AWG 16
No. of inner conductors 2 x 1.50mm²
Copper strand per conductor 192 x 0.10 mm
Cond. insulation, diameter PVC 3.0 mm
Temperature range Min.-20 °C
Temperature range Max.+70 °C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
HFSC215L1000BK 100 m/Roll 2 0.028
HFSC215L3000BK 300 m/Roll

Electrical Data

Capac. cond./cond. per 1 m 127 pF
Cond. resistance per 1 m 11.5 mΩ
