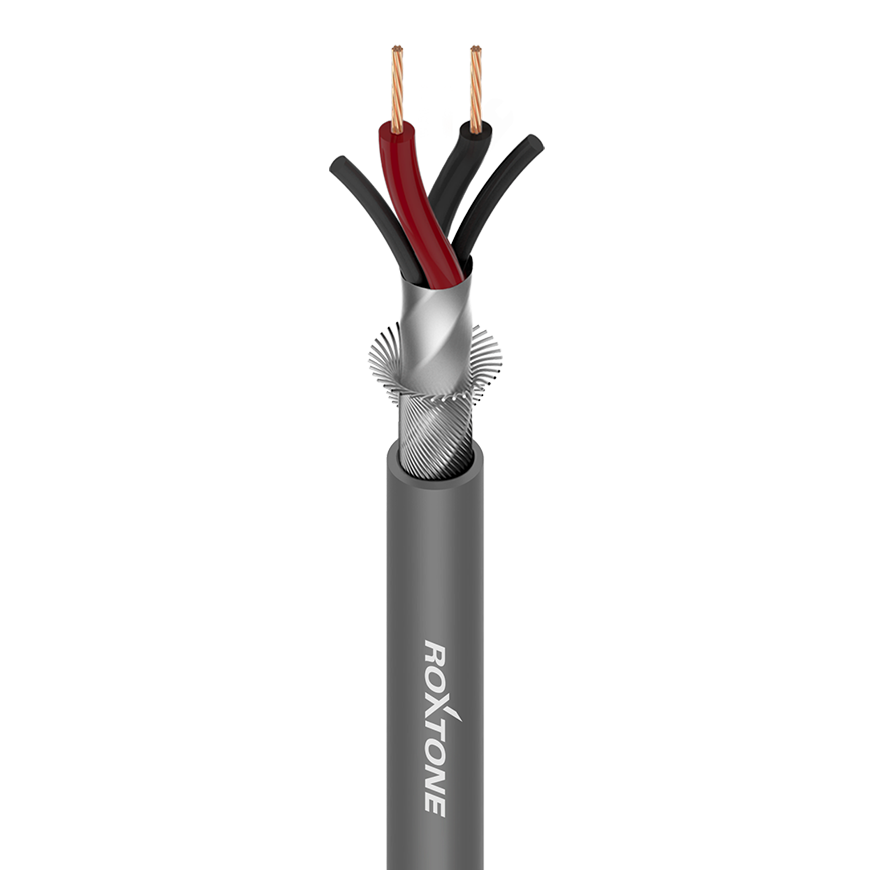

MC022L

LSZH Microphone Cable

MC022L

20AWG – 2 x 0.50 mm²
Color
Applications: Broadcast and building installation, Professional studio technology, Tough stage application for long lengths use
Product Type: Bulk Microphone Cable

Features

  • Optimum transmission quality even for long lengths due to the large wire diameter of 2 x 0.50 mm²
  • 100 % Copper spiral shielding and additional AL fleece
  • High durability due to a thick LSZH jacket with a diameter of 5.2mm
  • Easy to wind and good tensile strength
  • Low smoking and zero halogen suitable for permanent installation in places with specific security condition

Technical Data

Jacket, diameter LSZH 5.2 mm
AWG 20
No. of inner conductors 2 x 0.50 mm²
Copper strand per conductor 28 x 0.15 mm
Conductor insulation Flame retardant PE
Shielding Tin plated copper spiral shielding with 80 x 0.10 mm + AL fleece
Shielding factor 100 %
Temperature range min. -40 °C
Temperature range max. +90 °C
Packaging 100/200 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
MC022LL1000BK 100 m/Roll 4 0.031
MC022LL2000BK 200 m/Roll

Electrical Data

Capac. cond./cond. per 1 m 100 pF
Capac. cond./shield. per 1 m 185 pF
Cond. resistance per 1 m 35 mΩ
Shield. resistance per 1 m 30.4 mΩ
