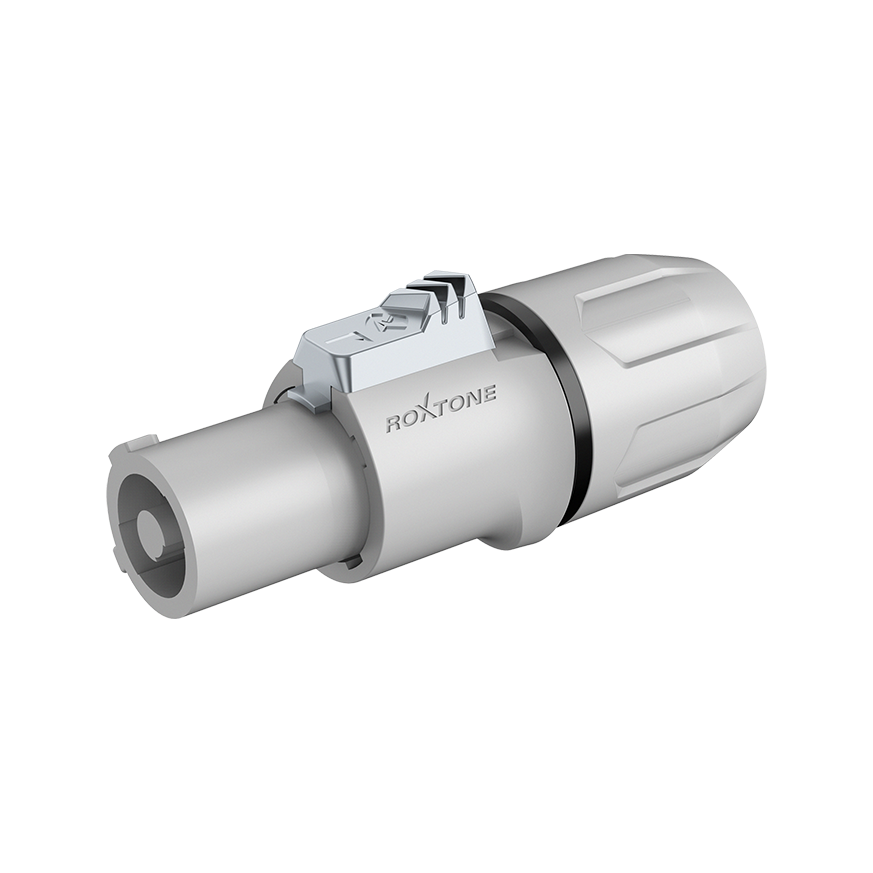

RAC3FCO

Power Link Series Power out Connector

RAC3FCO

Product Type: Power Connectors

Features

  • Lockable 3 pole equipment(AC) connectors
  • Thicker silver plated brass and beryllium brozne contacts supply excellent contact and conduction properties
  • eplaceable color ring on connector indicates cable of different equipment or length, easy for works
  • Dust-proof design of the bushing makes the additional protection
  • Raw material according with UL-V0 for safe use
  • 2 pieces strain-relief clamps are provided for different cable diameter
  • Patent-protected

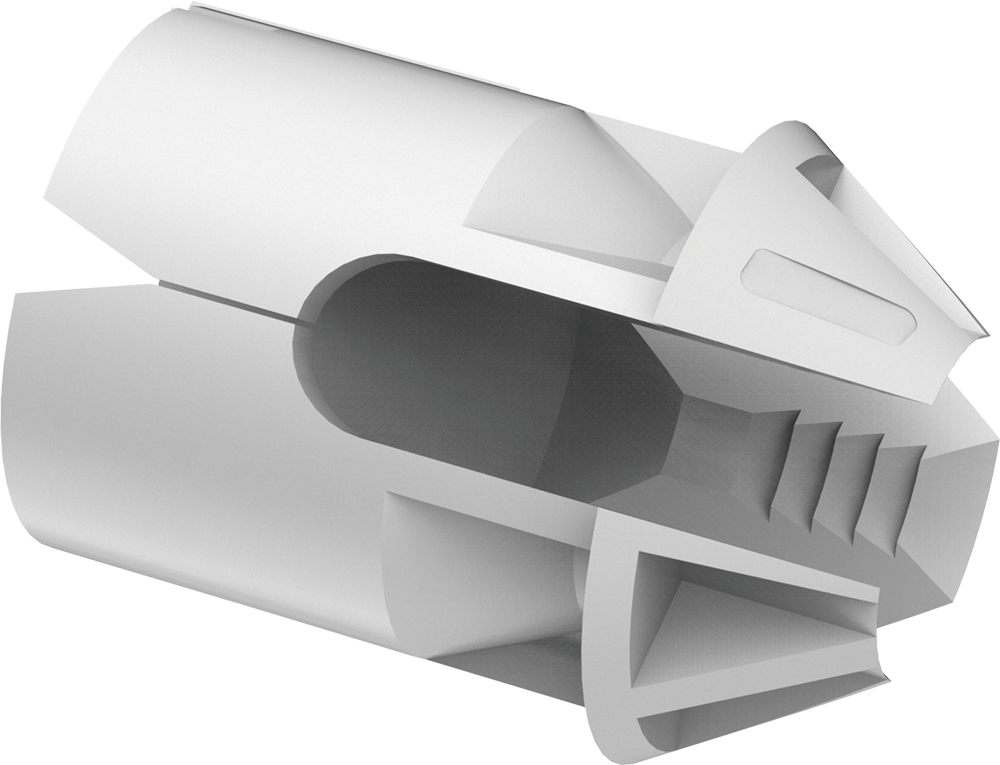

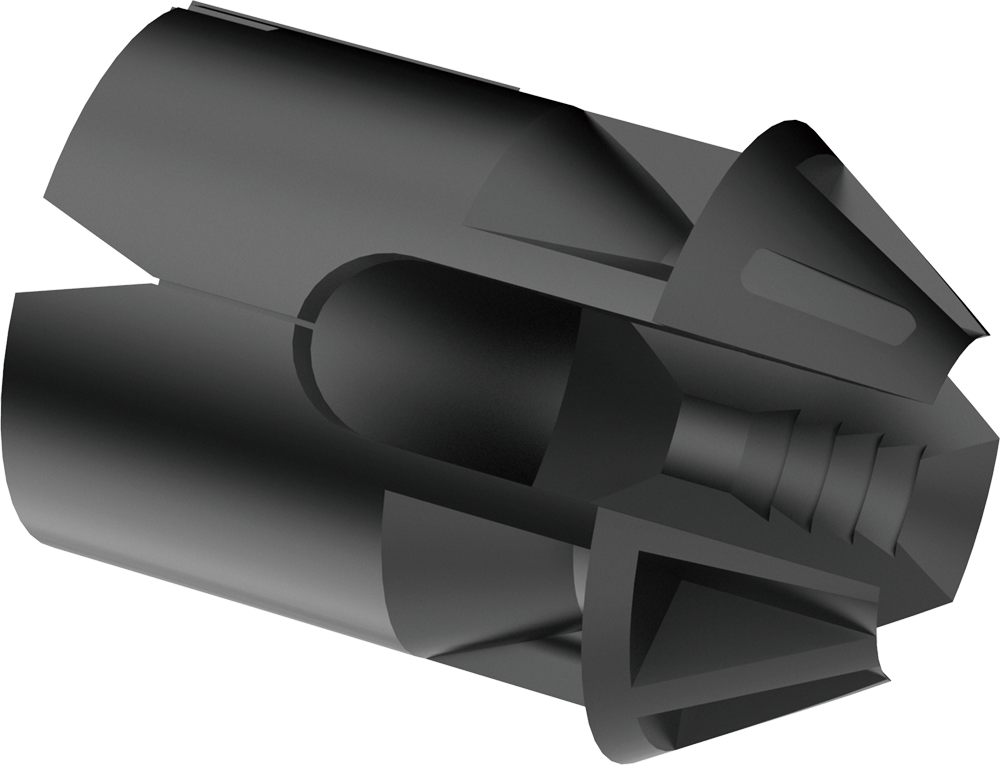

included 2pcs Strain-relief clamp

  • Used for cable diameter 6.0mm~9.0mm
  • Used for cable diameter 6.0mm~9.0mm

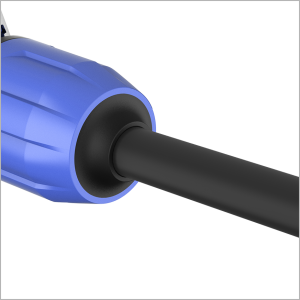

TPE Dust-proof structure

Available Color Rings



Technical Data

Housing PA6 30%GF
Insert PA66 20%GF
Latch Zinc Alloy diecast
Unitary contacts Brass
Contacts plating Silver
Strain relief POM
Color ring PA6 20% GF
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Cable O.D. range 6-12 mm
Fammability UL V-0

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)
RAC3FCO 320 0.066

Application & Assembly Instruction

APPLICATION & ASSEMBLY INSTRUCTION_POWERLINK

pdf - 2449KB
