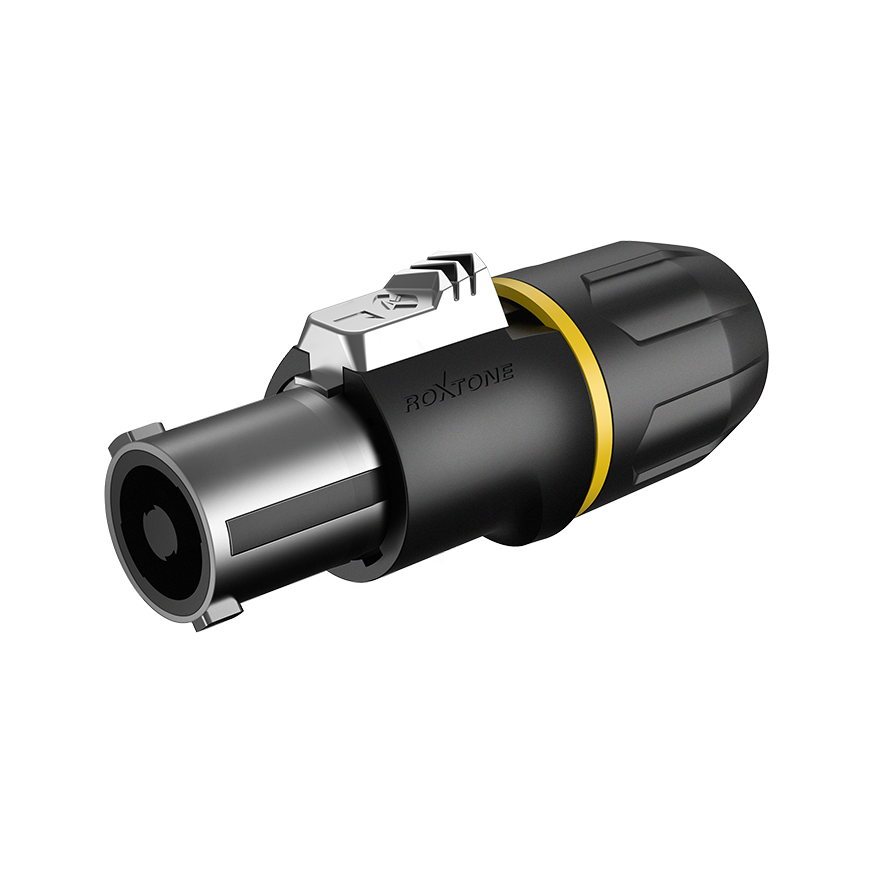

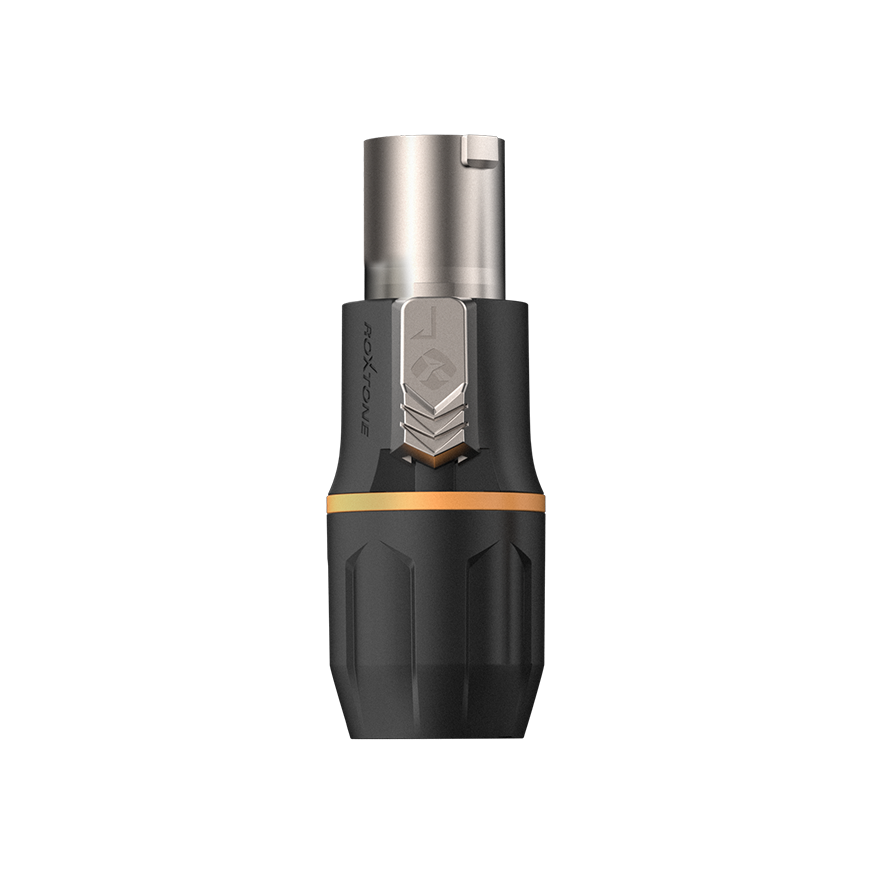

RS4FP-HD

4 Pole Speaker Female Connector, Heavy Duty Version

RS4FP-HD

Product Type: Speaker Connectors

Features

  • Lockable 4 pin speaker connector
  • Brass contacts supply excellent contact and ensure the conductivity
  • Heavy duty zinc alloy insert for longlife use
  • Replaceable color ring on connector indicates cable of different equipment or length, easy for operation
  • Dust-proof design of the bushing makes the additional protection
  • Patent-protected

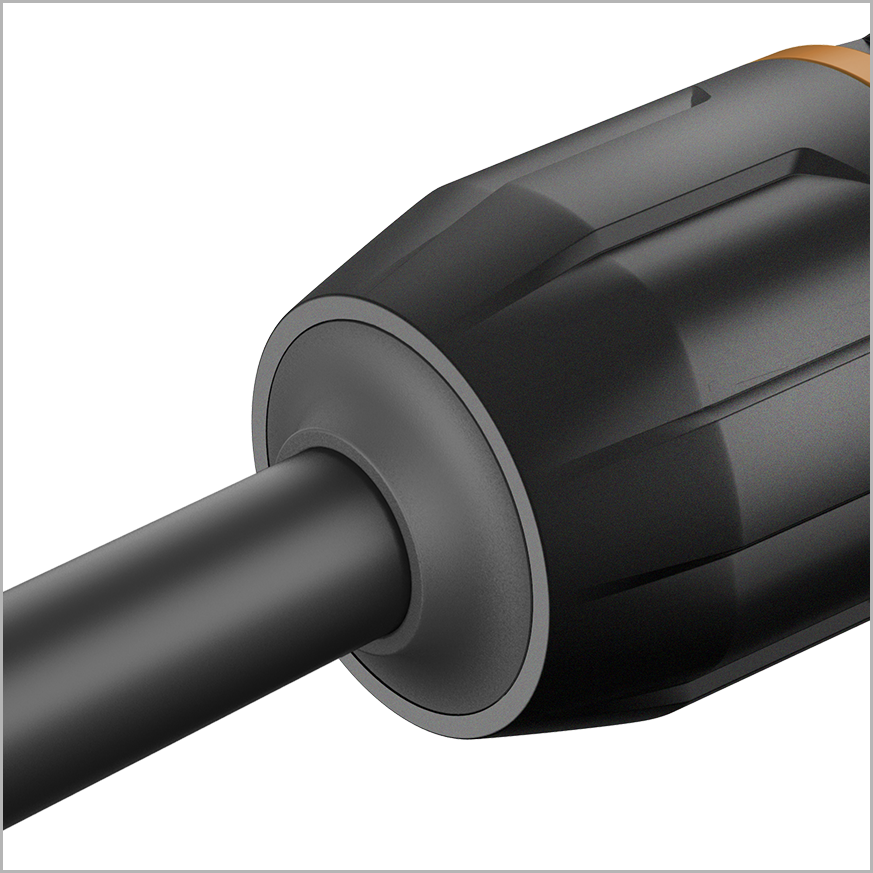

TPE Dust-proof structure

Available Color Rings

Technical Data

Housing PA6 30%GF
Insert PA66 20%GF
Latch Zinc Alloy diecast
Contacts Brass
Contacts plating Nickel
Strain relief POM
Color ring PA6 30%GF
Number of contacts 4
Rated current per contact 30 A rms
Cable O.D. range 6-12 mm

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
RS4FP-HD 400 0.066 4 pole Speaker female
connector, heavy duty version
