RX3F

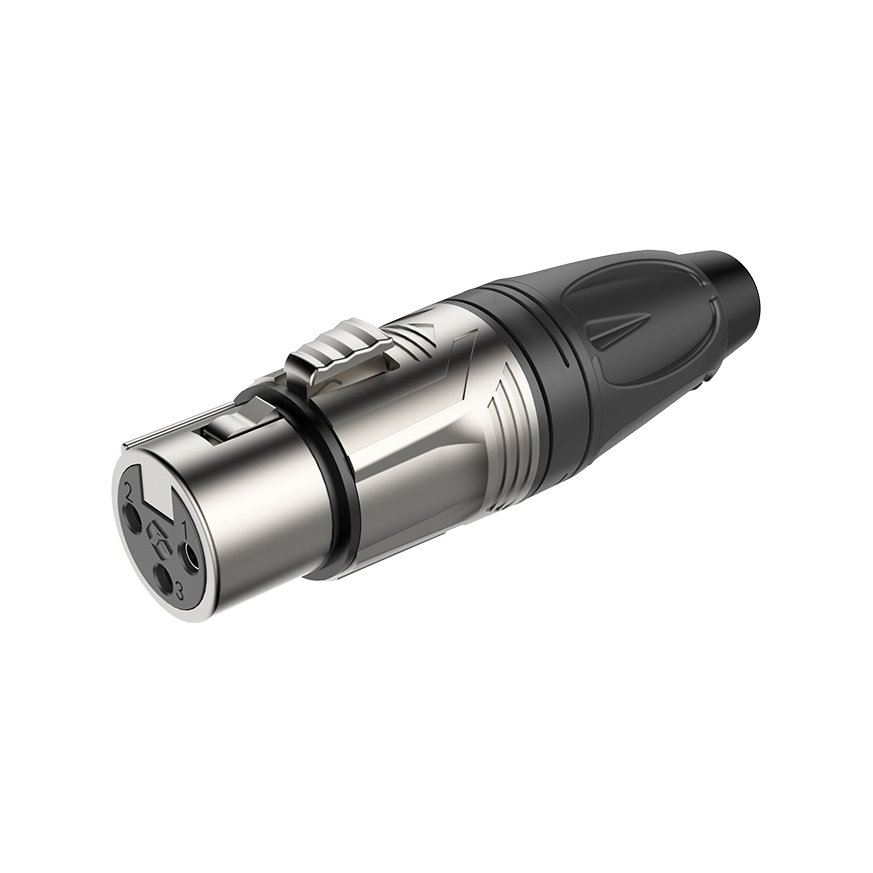

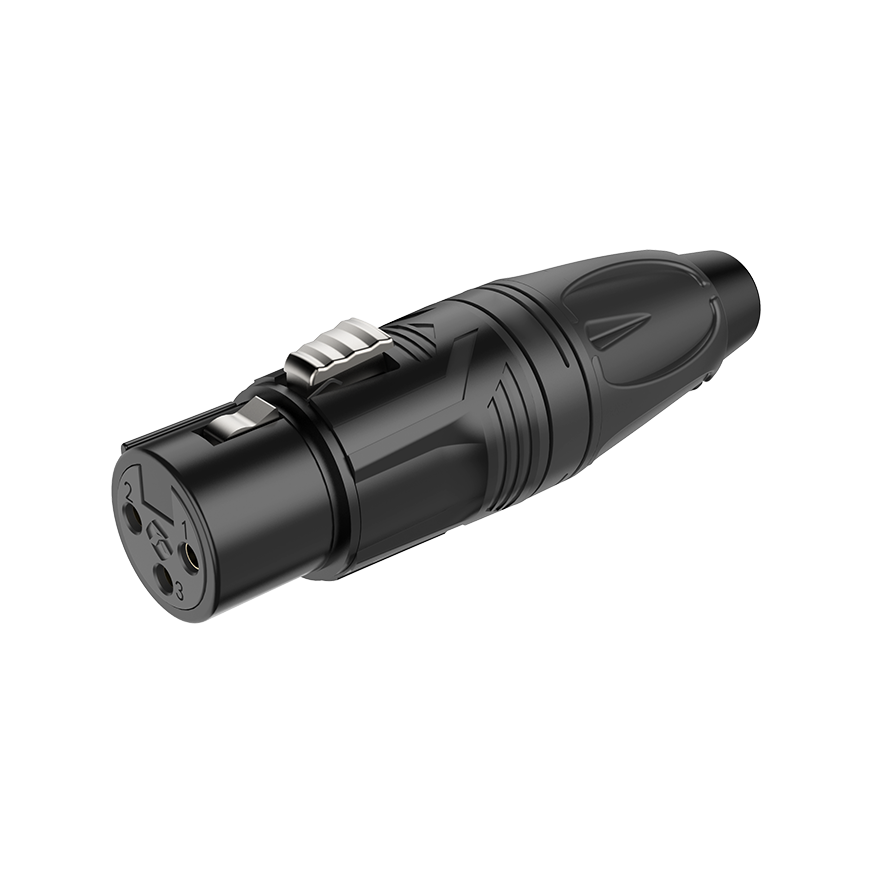

3 Pole XLR Female, Nickel Plated Housing / Black Housing

RX3F

Features

  • Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
  • Improved big button for latch lock
  • ROXTONE brand engraved on the housing
  • Replaceable color ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
  • Patent-protected

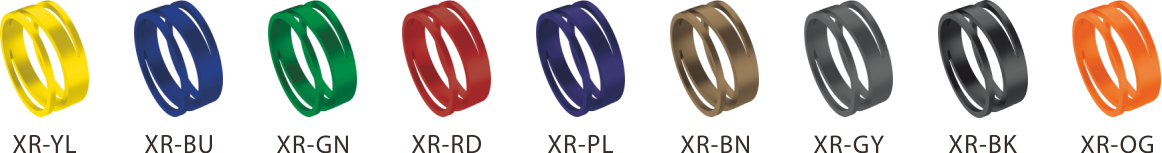

Available Color Rings

Technical Data

Housing Zinc alloy diecast
Insert PBT/PA6 30%GF
Contacts Bronze
Contacts plating Tin or Gold
Strain-relief clamp POM
Bushing PA 30%GF
Coding ring PA6 30%GF

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
RX3F-NT 640 0.066 3 pole XLR female, Nickel plated
housing, Tin plated contacts
RX3F-BG 640 0.066 3 pole XLR female, Black housing,
Gold plated contacts
