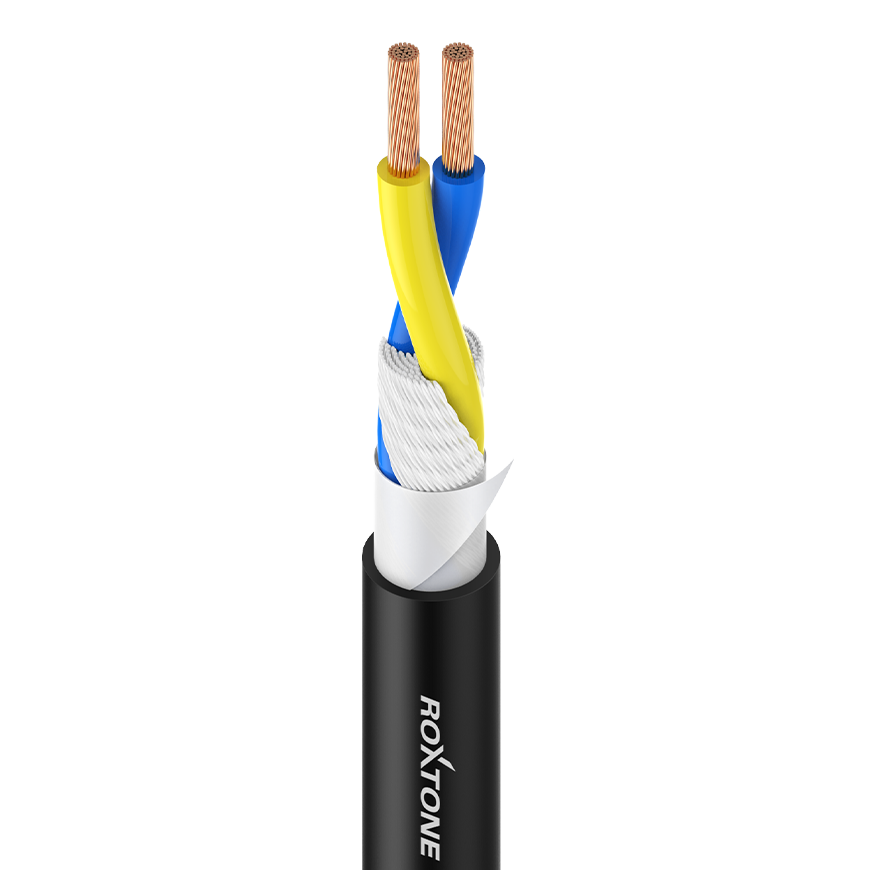

SC020D

Speaker Cable

SC020D

14AWG – 2 x 2.5 mm²
Color
Applications: All types of sound systems, For permanent installation, Wiring of HiFi-systems, Mobile outdoor areas
Product Type: Bulk Speaker Cables

Features

  • Soft PVC jacket and inner conductors twisted grant a perfect winding
  • Small diameter
  • Very affordable

Technical Data

Jacket, diameter PVC 9.0 mm
AWG 14
No. of inner conductors 2 x 2.5 mm²
Copper strand per conductor 80 x 0.20 mm
Cond. Insulation, diameter PVC 3.1 mm
Temperature range Min. -20 °C
Temperature range Max. +70 °C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
SC020DL1000BK 100 m/Roll 2 0.030
SC020DL3000BK 300 m/Roll

Electrical Data

Capac. cond./cond. per 1 m 138 pF
Cond. resistance per 1 m 5.0 mΩ
