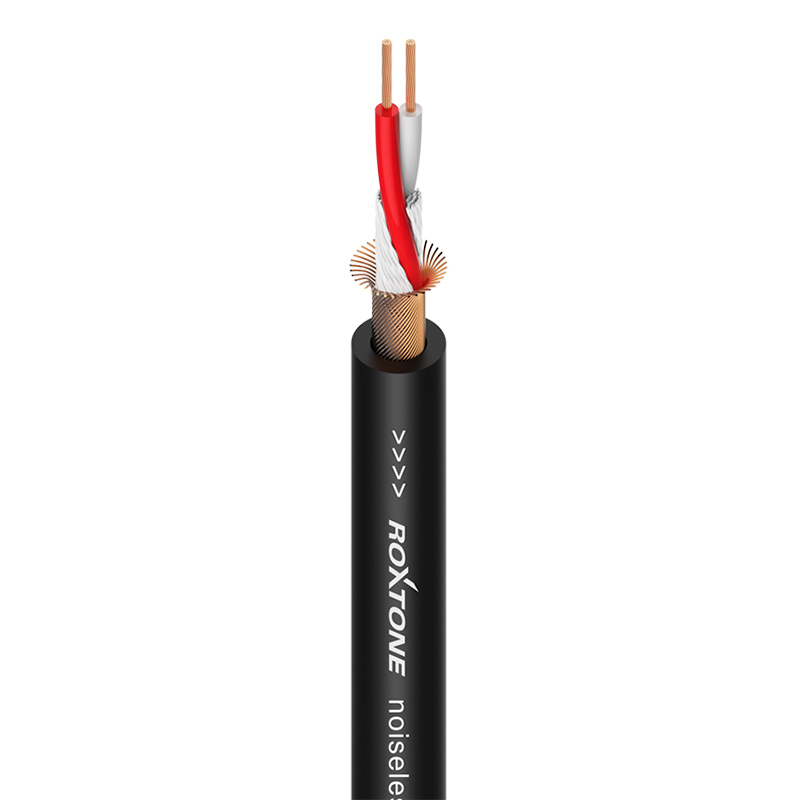

Balanced MIicrophone Cable
MC002
24AWG – 2 x 0.22 mm²
Color
- Qtys: 32
- Unit: metre(s)
- Applications: Stage, Home recording
- Series: Instrument cables
Features
- Fine stranded wire for high-quality signal transmission
- Very robust, with thick soft PVC jacket
- Good shielding provided by dense copper spiral shielding
- Highly flexible, well-suited for use with cable drums
- Attractively priced
Technical Data
| Jacket, diameter | PVC 6.0 mm |
| AWG | 24 |
| No. of inner conductors | 2 x 0.22 mm² |
| Copper strand per conductor | 28 x 0.10 mm |
| Conductor insulation | PE 1.40 mm |
| Shielding | copper spiral shielding with 80 x 0.10 mm |
| Shielding factor | 95% |
| Temperature range | min. -20°C |
| Temperature range | max. +70°C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 52 pF |
| Capac. cond./shield. per 1 m | 106 pF |
| Cond. resistance per 1 m | 80 mΩ |
| Shield. resistance per 1 m | 30 mΩ |
