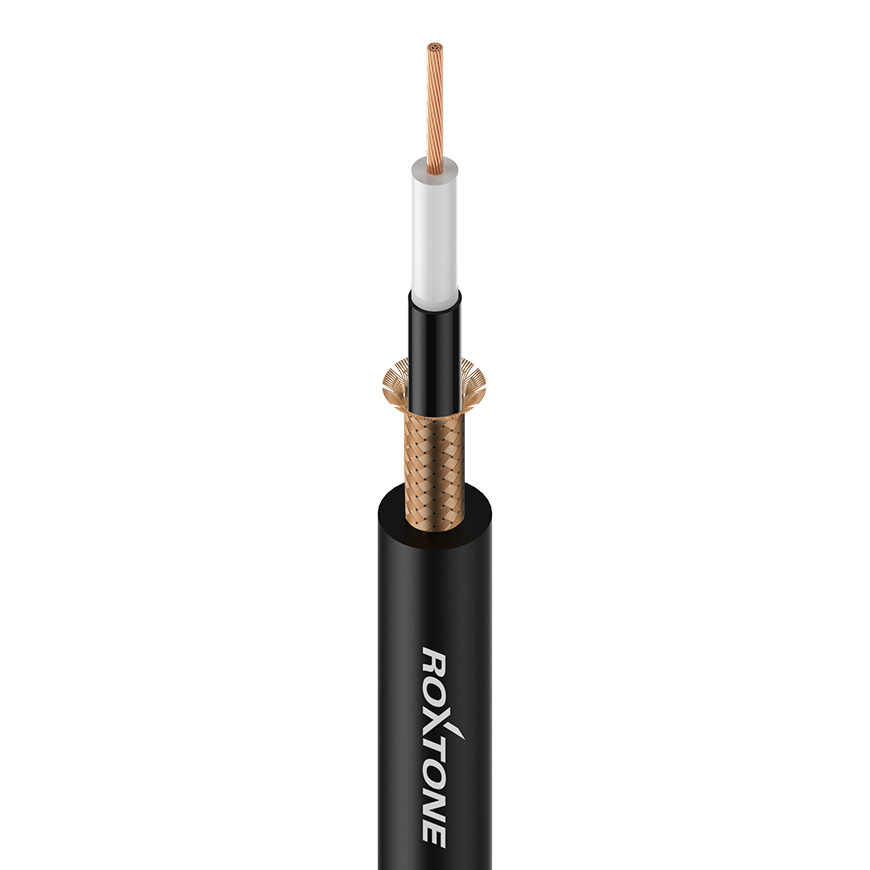

Instrument Cable - VINTAGE

GC040

24AWG – 1 x 0.24 mm²

Color

Applications: High quality guitar cable for studio and stage, Unbalanced cable for keyboards, samplers, mixing boards, etc

Very robust due to the large conductor diameter and fine individual stranding
100 % protected due to double shielding (dense copper braided + semiconductor shielding)
High durability due to a thick PVC jacket with a diameter of 7.0mm
High flexibility makes it easy to wind

Jacket, diameter	PVC 7.0 mm
AWG	24
No. of inner conductors	1 x 0.24 mm²
Copper strand per conductor	30 x 0.10 mm
Conductor insulation	LLDPE 2.4 mm
Shielding	copper braided shielding with 128 x 0.10 m+ semiconductor
Shielding factor	100 %
Temperature range	min. -20 °C
Temperature range	max. +70 °C
Packaging	100/300 m roll
