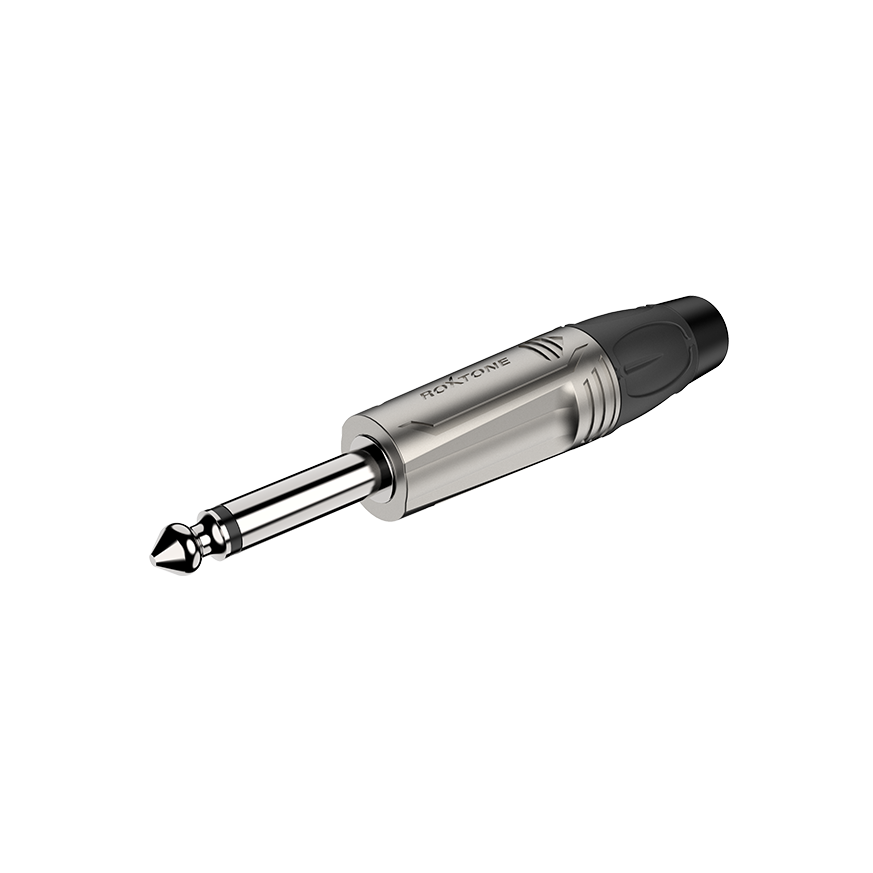

RJ2P

6.3mm Mono Plug, Nickel Plated Housing / Black Housing

RJ2P

Features

  • Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
  • Slim 1/4” plug for ease using
  • Additional rubber sleeve provides an excellent cable protection
  • Special strain-relief clamp for ease tightening the cable without screw
  • ROXTONE brand engraved on the housing
  • Patent-protected

Thickness of brass tube 0.4mm

Technical Data

Housing Zinc alloy diecast
Insulation PBT
Contacts Brass
Contacts plating Nickel or Gold
Bushing PA 30%GF

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
RJ2P-NN 400 0.050 6.3mm mono plug, Nickel plated housing,
Nickel plated contacts

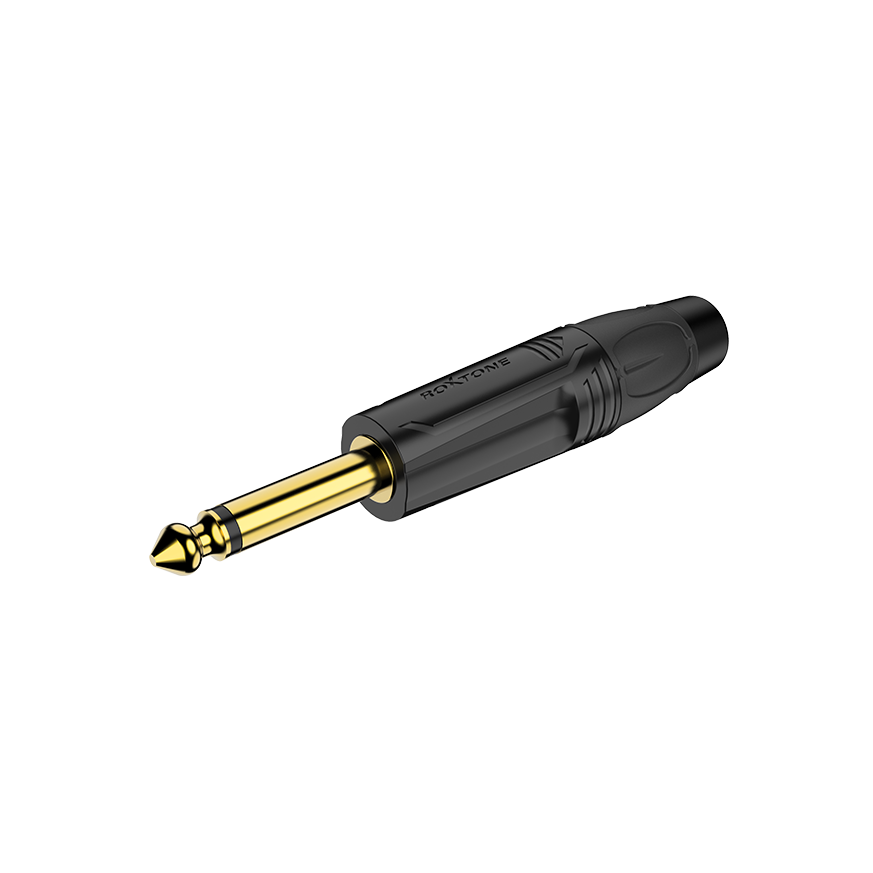

RJ2P-BG 400 0.050 6.3mm mono plug, Black housing,
Gold plated contacts
