RJ2RP

6.3mm Right Angle Mono Plug, Nickel Plated Housing / Black Housing

RJ2RP

Features

  • Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
  • Slim 1/4” plug for ease using
  • Additional rubber sleeve provides an excellent cable protection
  • Meets EIA / IEC standards
  • ROXTONE brand molded on the cap which is made from PA 30%GF
  • Patent-protected

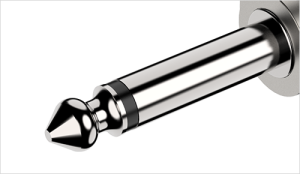

Thickness of brass tube 0.4mm

Technical Data

Housing Zinc alloy diecast +PA 30% GF
Insulation PBT
Contacts Brass
Contacts plating Nickel or Gold
Bushing PA 30%GF

Engineering Drawing

Packaging Data

Order Code     Carton QTY
(PCS)		     Carton Volume
(m³)		 Description

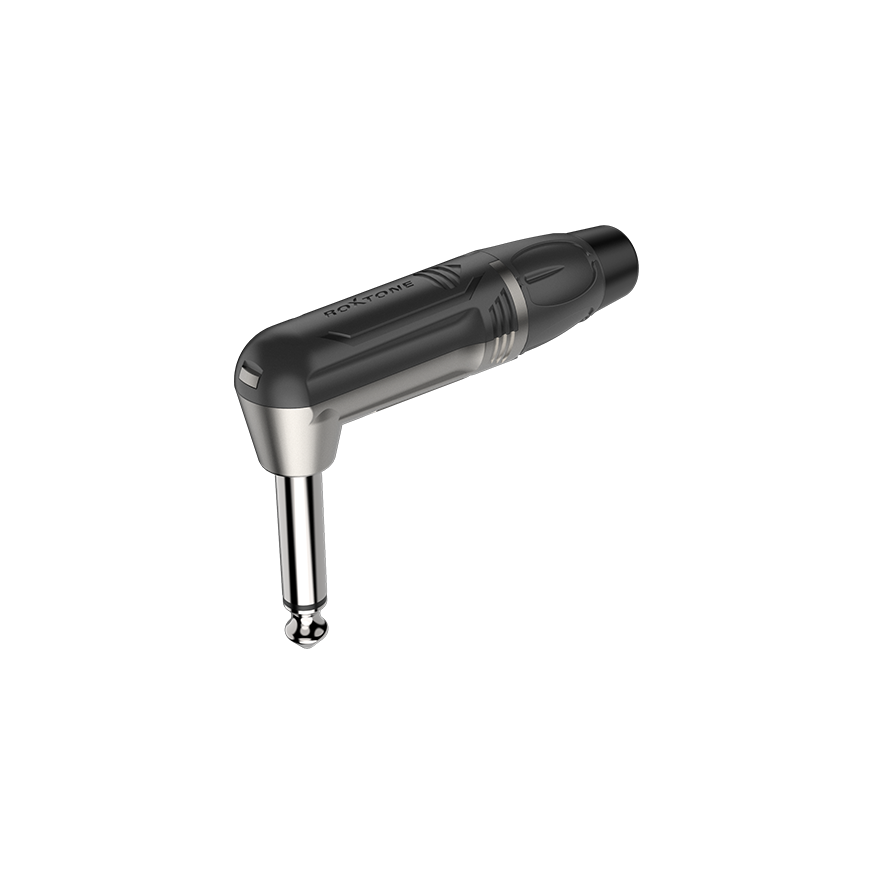

RJ2RP-NN 400 0.050 6.3mm right angle mono plug, Nickel plated housing / Nickel plated contacts

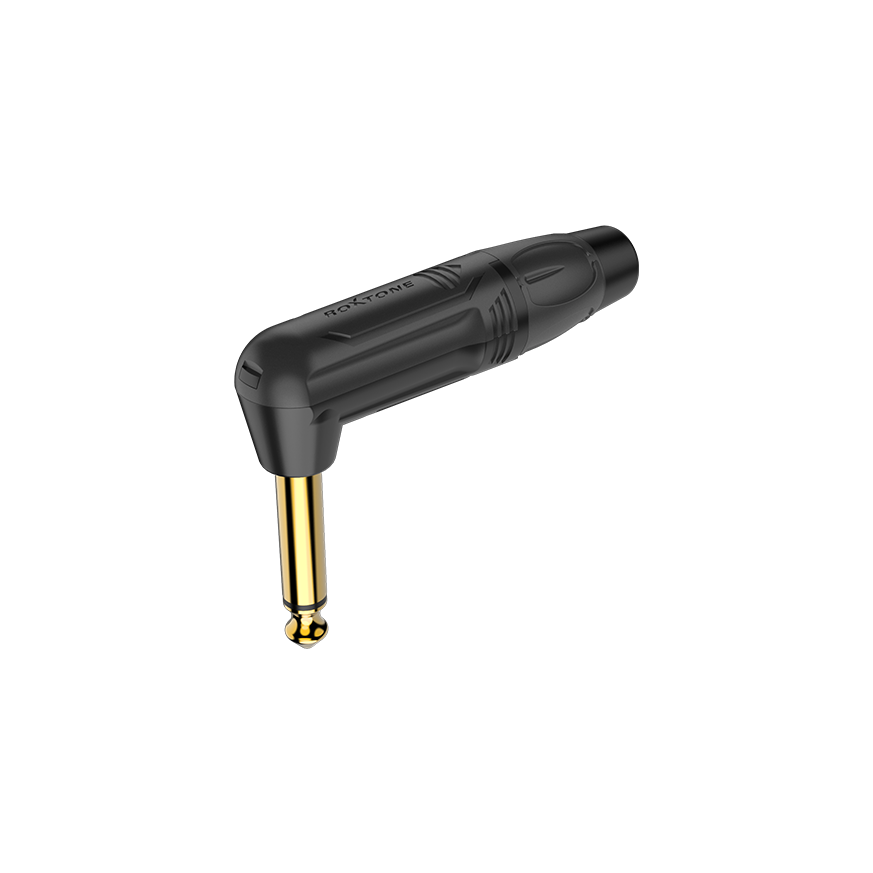

RJ2RP-BG 400 0.050 6.3mm right angle mono plug, Black housing / Gold plated contacts
