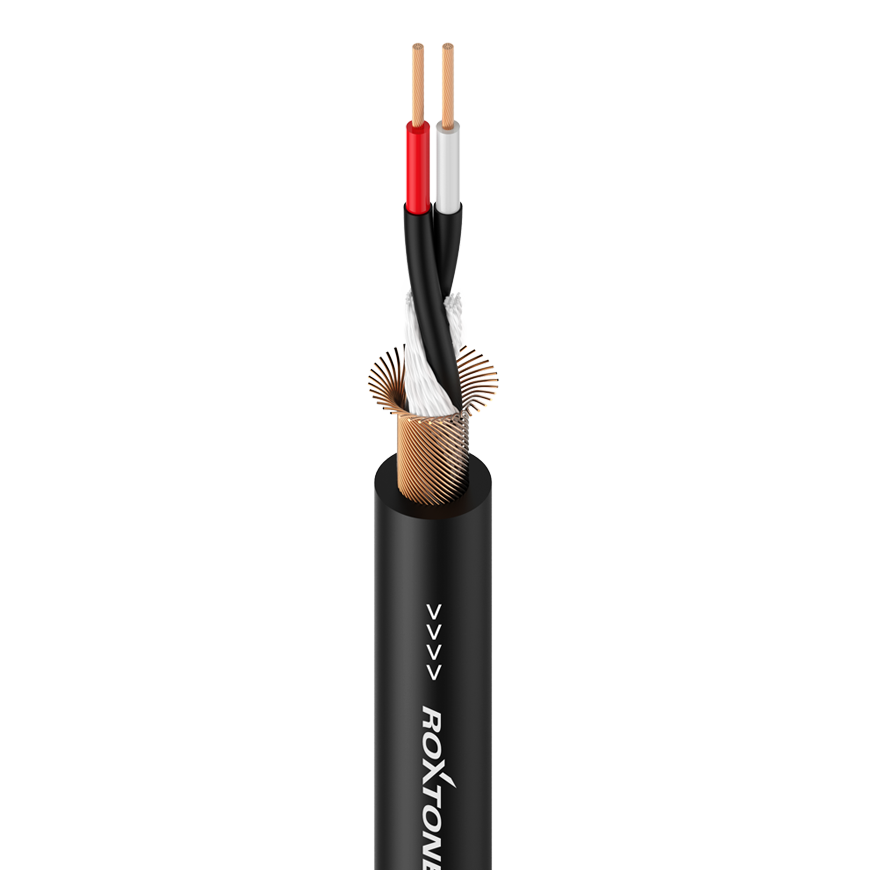

Balanced Microphone Cable – 24AWG – 2 x 0.22 mm²
Balanced Microphone Cable
| Jacket, diameter | PVC 6.8 mm |
| AWG | 24 |
| No. of inner conductors | 2 x 0.22 mm² |
| Copper strand per conductor | 28 x 0.10 mm |
| Conductor insulation | PE 1.40 mm |
| Shielding | copper spiral shieldingwith 80 x 0.10 mm indiv. strand+ semiconductor |
| Shielding factor | 100% |
| Temperature range | min. -20°C |
| Temperature range | max. +70°C |
| Packaging | 100/300 m roll |
| Order Code | Length | Carton QTY (PCS) |
Carton Volume (m³) |
| MC005L1000BK | 100 m/Roll | 2 | 0.024 |
| MC005L3000BK | 300 m/Roll |
| Capac. cond./cond. per 1 m | 70 pF |
| Capac. cond./shield. per 1 m | 145 pF |
| Cond. resistance per 1 m | 80 mΩ |
| Shield. resistance per 1 m | 31 mΩ |
