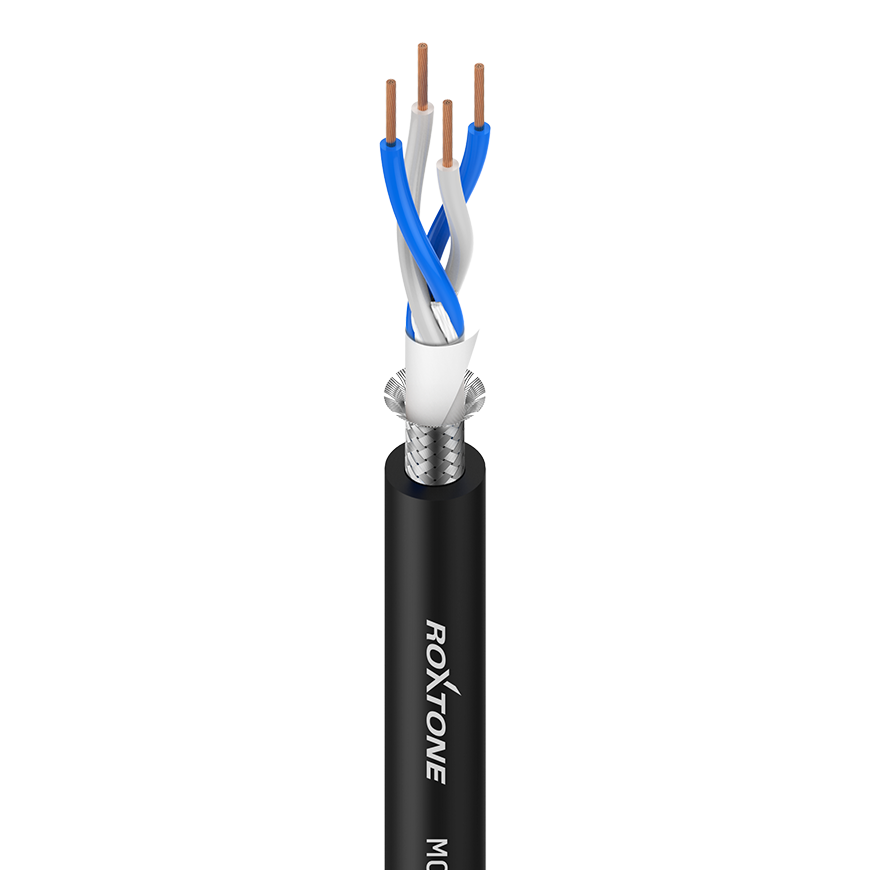

MC040

Starquad Microphone Cable

MC040

24AWG – 4 x 0.22 mm²
Color
Applications: Professional studio and microphone technology, Connection of effect and control units needing a return signal, Professional MIDI-technology transmission cable, High end connection of HiFi-units
Product Type: Bulk Microphone Cable

Features

  • Noise-free due to the crossover connection of 4 individual wires
  • Very low capacitance when 4 conductors to be wired crossover
  • Very good transmission safety and linear sound transmission
  • The shields are super flexible and offer outstanding noise rejection

Technical Data

Jacket, diameter PVC 6.2 mm
AWG 24
No. of inner conductors 4 x 0.22 mm²
Copper strand per conductor 28 x 0.10 mm
Conductor insulation PE 1.40 mm
Shielding tin plated copper braided shielding with 128 x 0.10mm
Shielding factor 95 %
Temperature range min. -20°C
Temperature range max. +70°C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
MC040L1000BK 100 m/Roll 4 0.037
MC040L3000BK 300 m/Roll 1 0.026

Electrical Data

Capac. cond./cond. per 1 m 49 pF
Capac. cond./shield. per 1 m 92 pF
Cond. resistance per 1 m 80 mΩ
Shield. resistance per 1 m 23.2 mΩ
