RA2DT-XMJF

Single Channel Isolator

RA2DT-XMJF

Product Type: Isolator

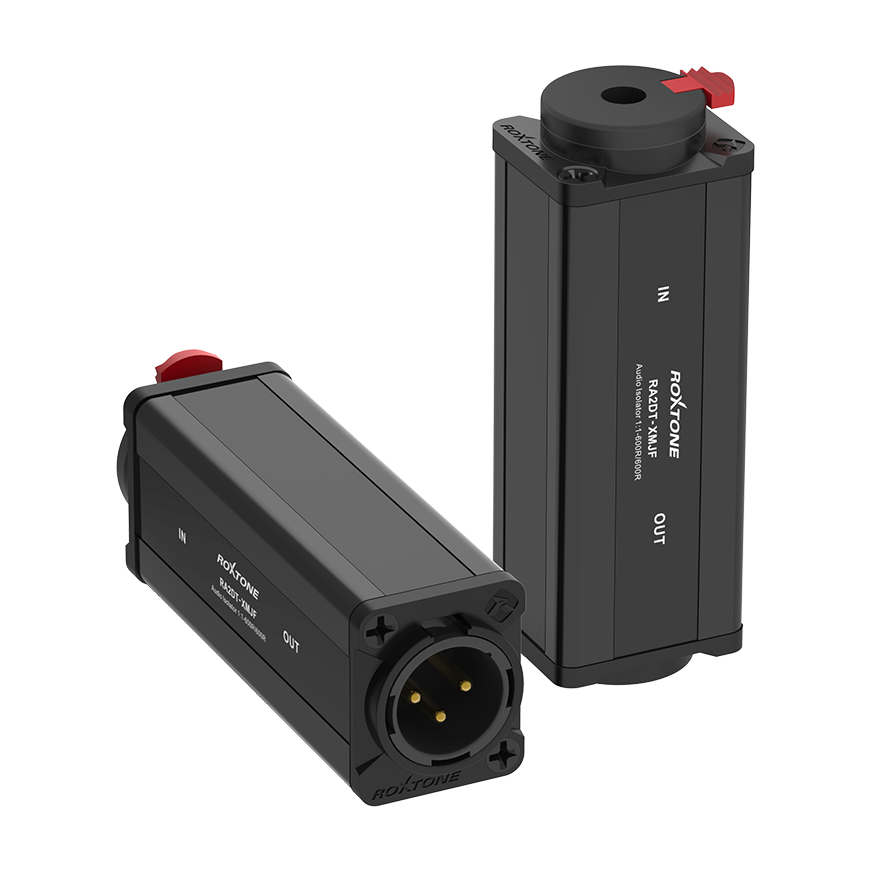

Professional “D” shape black aluminum-alloy adapter with audio transformer: 6.3mm mono jack with latch lock to 3-pole XLR male socket

Features

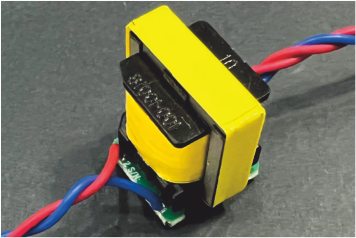

  • Audio Transformer 1:1 impedance ratio 600:600
  • Low cost solution for unbalanced / balanced line conversion and passive Dl applications, where no earth or gain switching is required

Engineering Drawing

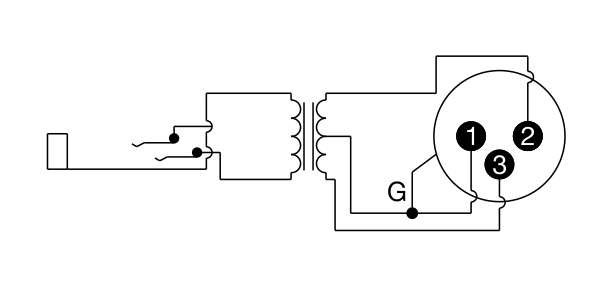

Wiring Diagram

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)
RA2DT-XMJF 15 0.007
