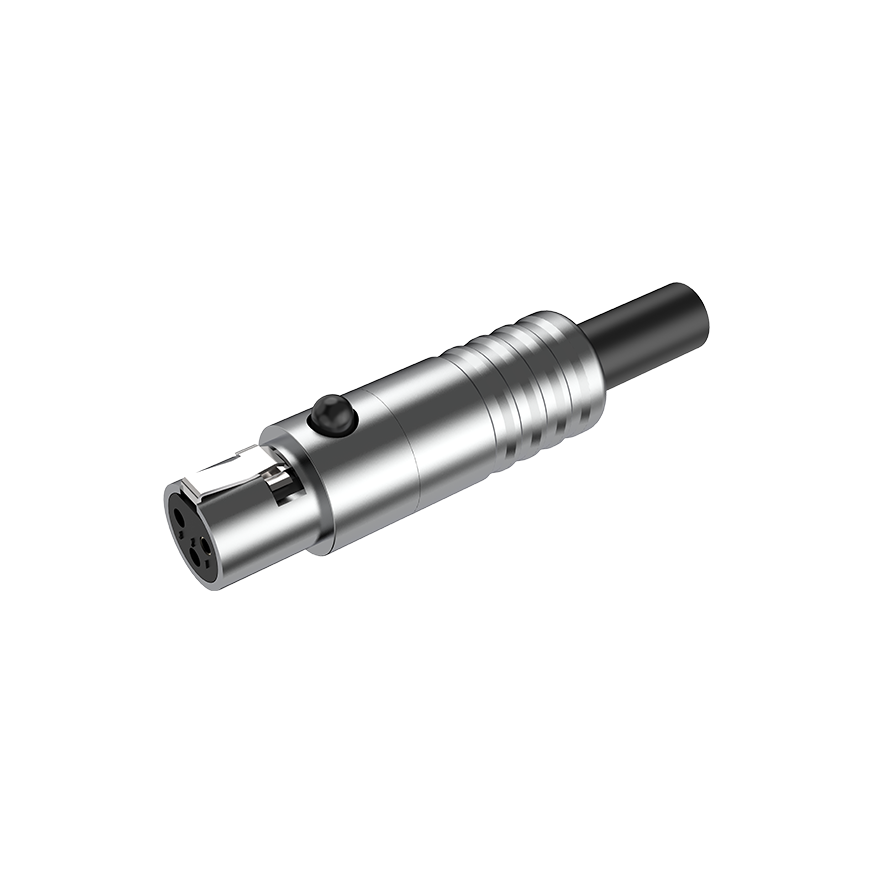

RMX*F

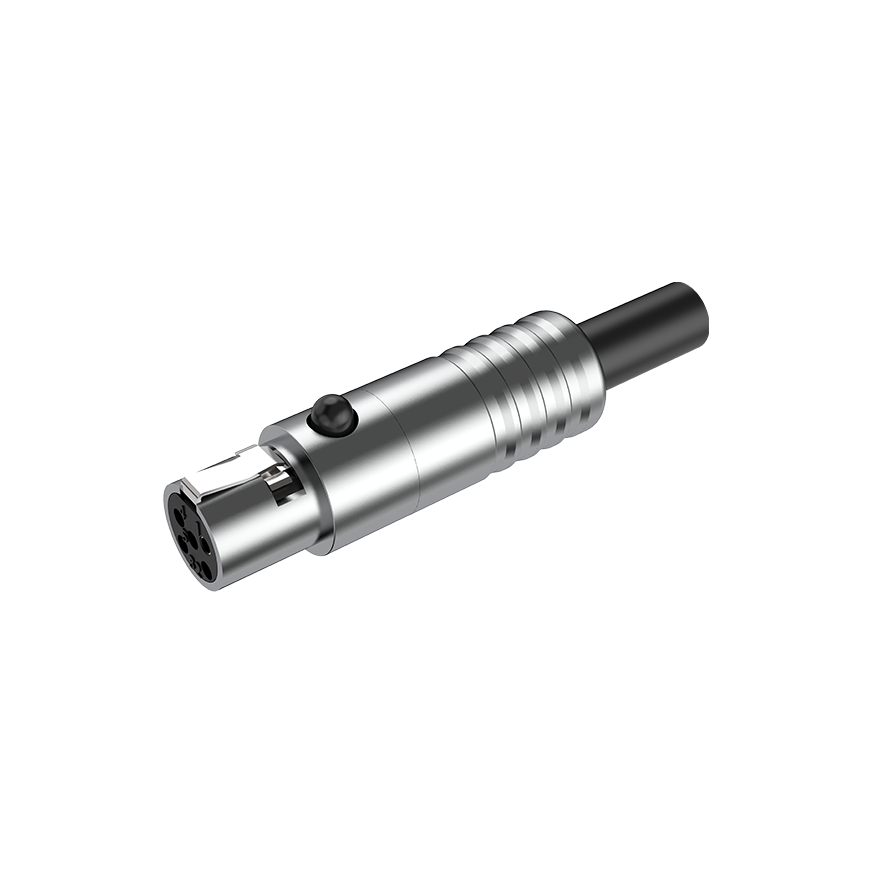

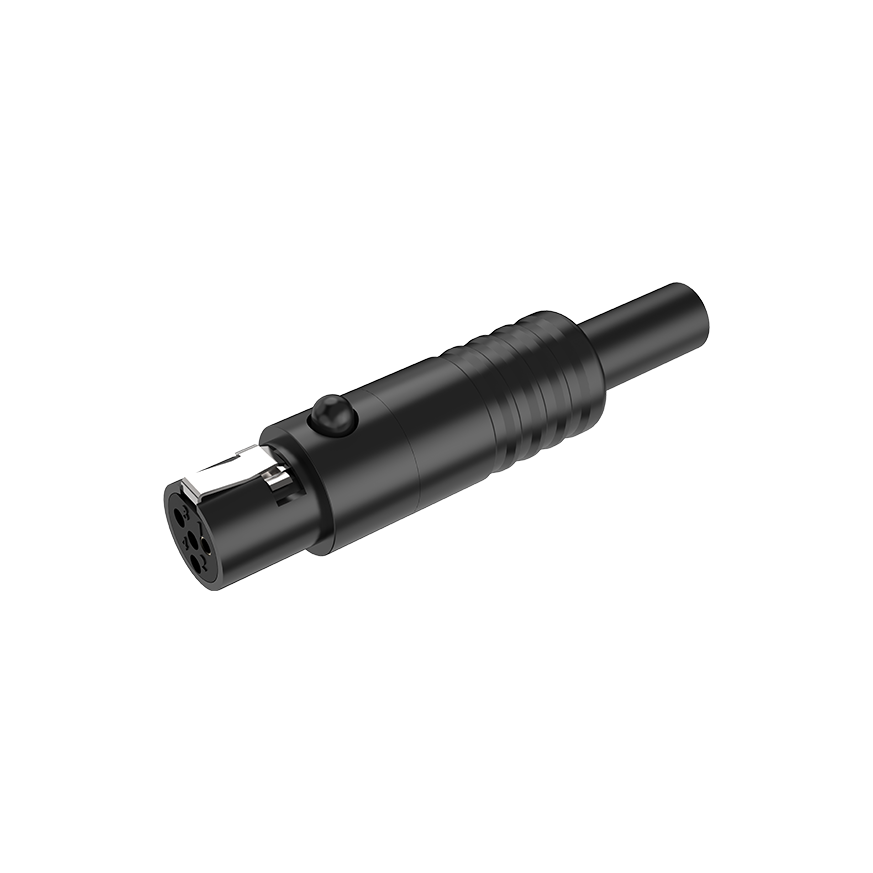

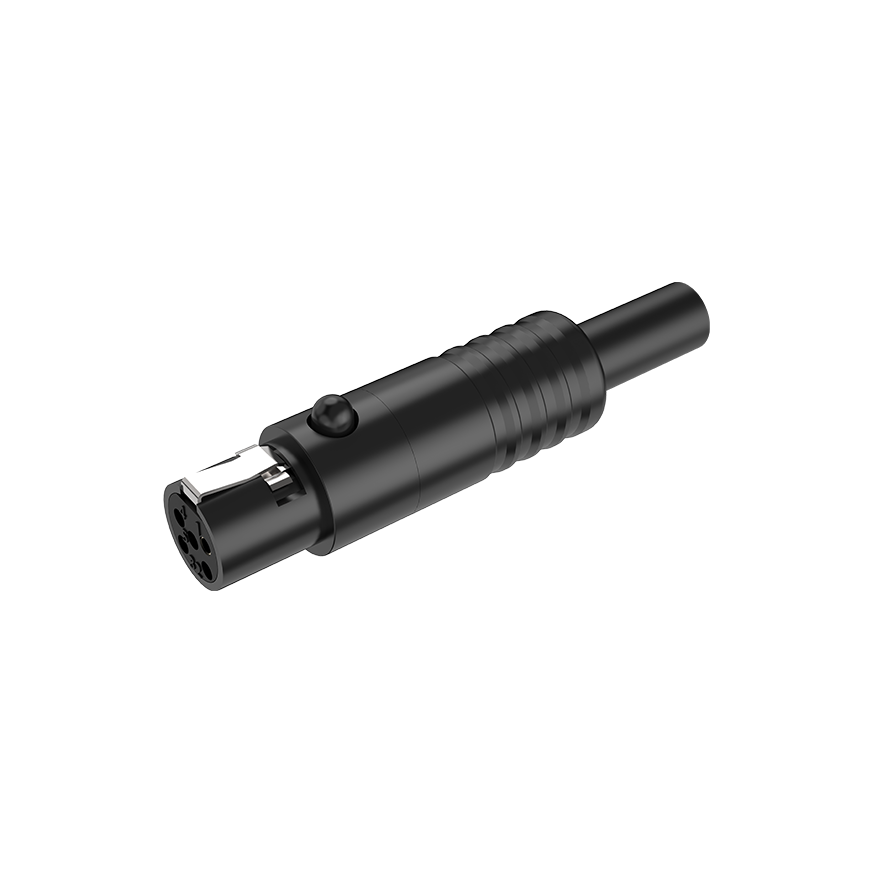

3/4/5 Pole Mini XLR Female, Nickel Plated Housing / Black Housing

RMX*F

Features

  • Mini XLR with 3P,4P,5P for selection
  • Use for cable diameter from 2.0mm – 4.5mm
  • Brass shell with delicate and solid appearance
  • XLR female with bronze contacts with excellent plug and unplug performance
  • Anti-bending silicone bushing

Technical Data

Housing Brass
Insert PA6 30%GF
Contacts Bronze
Contact plating Gold
Strain-relief clamp POM
Bushing Silicone

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
RMX*F-C 400 0.050 Mini XLR female, Nickel plated
housing / Gold plated contacts
RMX*F-B 400 0.050 Mini XLR female, Black housing /
Gold plated contacts

related products

LX3F

LX3F

Low Profile Rotatable XLR Female

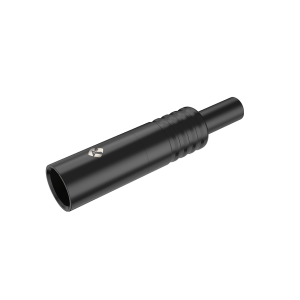

RMX*M
