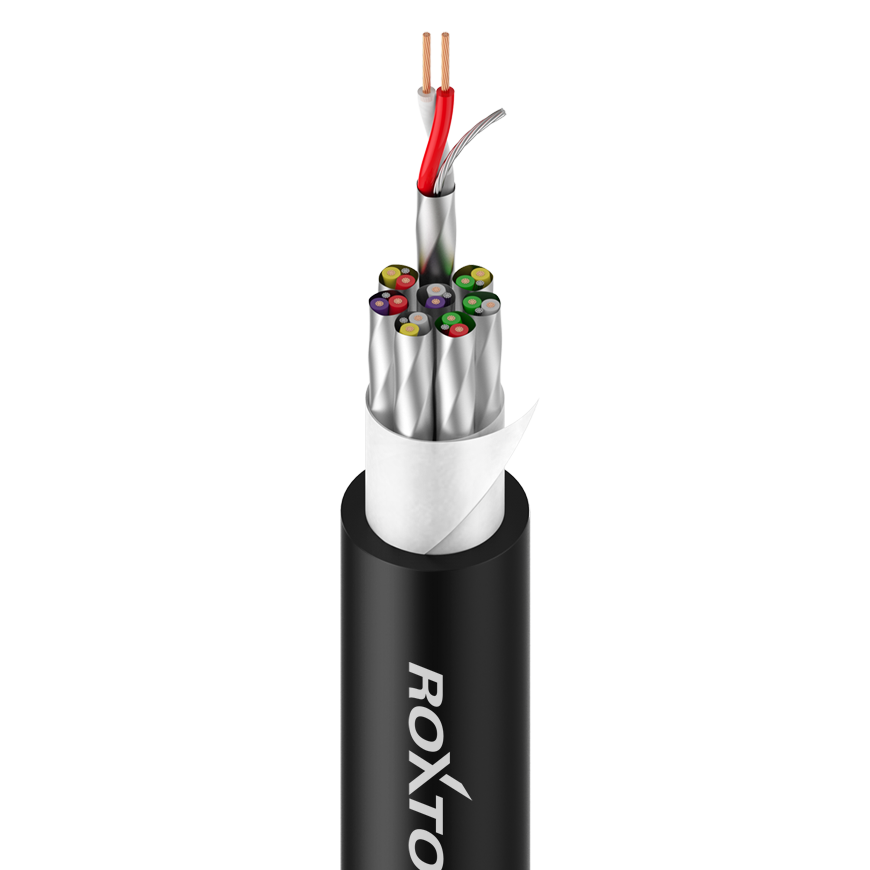

TCF8

Multicore Audio Cable

TCF8

24AWG – 8 x 2 x 0.22mm²
Color
Applications: Reasonable cable for the construction of stage box systems and multi-pair systems, Dependable cable for permanent installation in installation technologies

Features

  • Compact diameter
  • Excellent to work with due to the use of a special AL/PT-foil
  • Flexible due to the special wire construction
  • Good shielding due to the overall and individual wire pair shielding

Technical Data

PVC jacket, diameter 10.2 mm
AWG 24
No. of inner conductors 8 x 2 x 0.22 mm²
Copper strand per conductor 28 x 0.10 mm
Conductor insulation PE 1.2 mm
Shielding AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor 100%
Temperature range Min. -20 °C
Temperature range Max. 70 °C

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
TCF8L1000BK 100 m/Roll

Electrical Data

Capac. Cond./cond. Per 1 m 61 PF
Capac. Cond./shield. Per 1 m 125 PF
Cond. Resistance per 1 m 78 mω
Shield. Resistance per 1 m 105 mω
