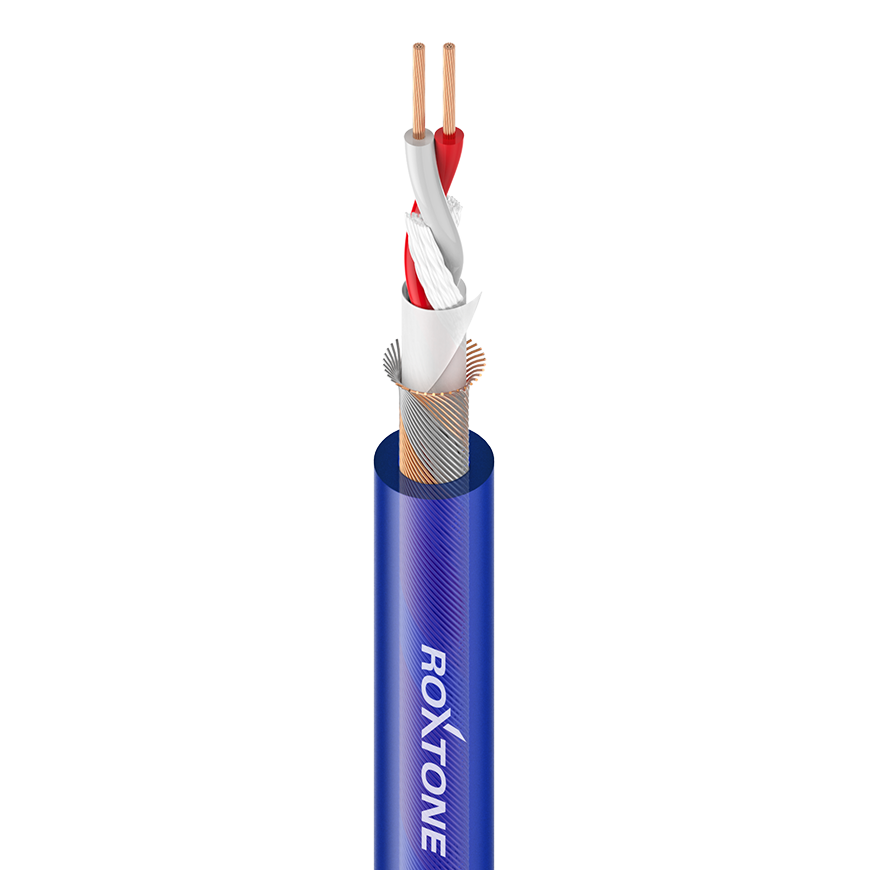

MC080

Matte Transparent Microphone Cable

MC080

23AWG – 2 x 0.25mm²
Color
Applications: Stage, Mobile, KTV
Product Type: Bulk Microphone Cable

Features

  • Excellent tensile strength due to use of Tinsel wire
  • The use of OFC strands and a large conductor cross-section of 2 x 0.25 mm² ensure high-quality signal transmission
  • Very low capacitance due to thick PE insulation
  • Good shielding provided by dense copper and Tinsel wire spiral shielding
  • Highly flexible due to high quality material and professional stranded wire technology

Technical Data

Jacket, diameter PVC 6.8 mm
AWG 23
No. of inner conductors 2 x 0.25 mm²
Copper strand per conductor 32 x 0.10 mm Bare copper+ 3 x 0.23 mm Tinsel wire
Conductor insulation LLDPE 1.55 mm
Shielding 32 x 0.12 mm Tin copper+ 40 x 0.23 mm Tinsel wire spiral shielding
Shielding factor 100 %
Temperature range min. -20 °C
Temperature range max. +70 °C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
MC080L1000TBU 100 m/Roll 2 0.024
MC080L1000TRD 100 m/Roll 2 0.024
MC080L3000TBU 300 m/Roll
MC080L3000TRD 300 m/Roll

Electrical Data

Capac. cond./cond. per 1 m 54 pF
Capac. cond./shield. per 1 m 116 pF
Cond. resistance per 1 m 66 mΩ
Shield. resistance per 1 m 38 mΩ
